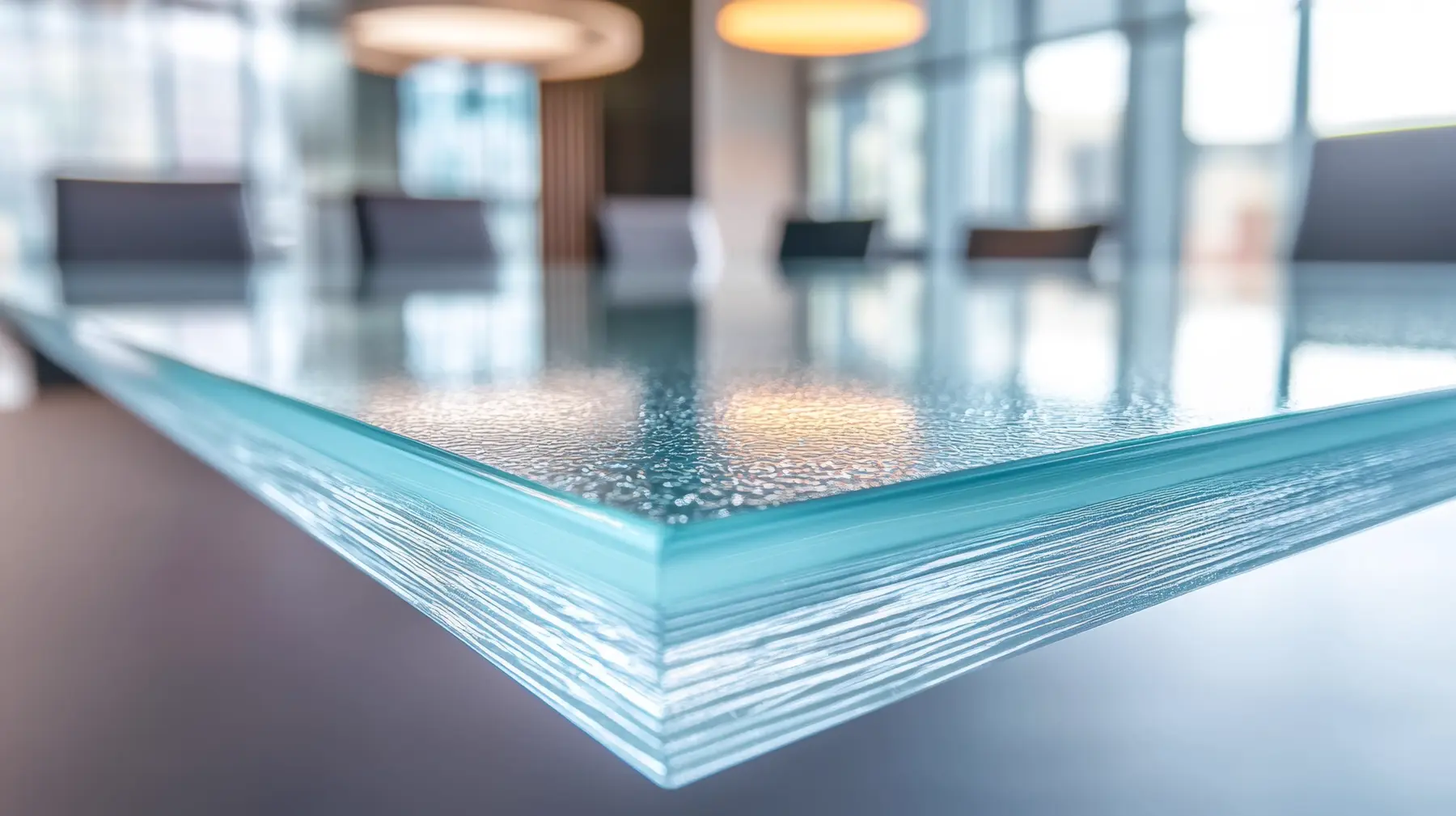

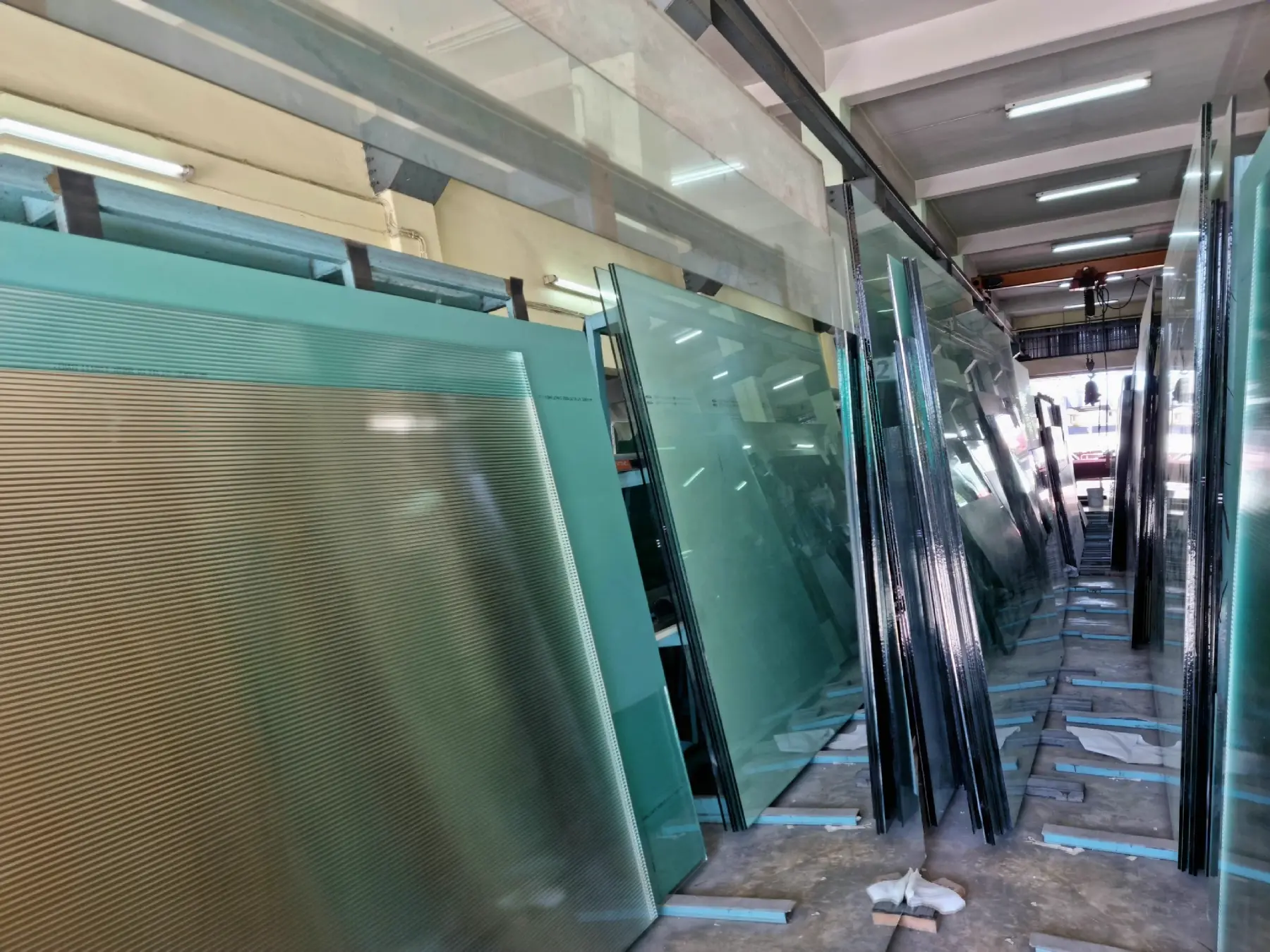

Ballistic Glass
This extremely durable and light-weight transparent armor is available either in flat sheets, or curved and cut to fit your specific applications. Combining the hard surface of glass with the resilient toughness of polycarbonate, GAFFCO Glass Clad systems are specially designed to defeat threats from high-powered firearms with low or no spall ing. GAFFCO Glass Laminates meet NIJ and UL standards for bullet-resistant applications.
We also manufacture laminated to meet your specfic threat or standards specifications. Please call with your requirements.
Available Surfaces and Colors:
- Tempered
- Heat Strengthened
- Annealed
- Chemically Strengthened
- Grey, Green or Bronze Tints
We can provide a variety of laminates to stop your specified threat level.
Diagrams
Specifications
Ballistic Glass Clad Laminates
| Product | Threat | Thickness | Lbs/Sq.Ft. | ||
|---|---|---|---|---|---|
| low spall | no spall | low spall | no spall | ||
| GAFF 002 | .357 JSP, 9mm FMJ, .44 SWC (3 Shots) | 1.056" | .818" | 11.64 | 8.99 |
| GAFF 003 | .44 FMJ, 7.62 x 25 LCSJ (Tokarev)(3 Shots) | 1.181" | .943" | 13.55 | 10.90 |
| GAFF 004 |
7.62 M80 Ball, 30.06 PSP, 308 FMJ (1 Shot) 7.62 x 39 SC (123) (AK-47) (2 Shots) |
1.313" | 1.075" | 14.33 | 11.68 |
| GAFF 5000 | NIJ Level 3, 7.62 M80 Ball (5 Shots) | NA | 1.64" | NA | 18.00 |
| GAFF 005 |
5.56 x 45 (223) M193 (3 Shots) 7.62 x 39 SC (123) (3 Shots) |
1.588" | 1.350" | 17.49 | 14.78 |
| GAFF 005MH |
7.62 M80 Ball, 30.06 PSP (3 Shots) 7.62 x 39 SC (123) - SKS (3 Shots) 5.56 x 45 M855 (AP) (1 Shot) 5.56 x 45 (223) PSP (5 Shots) |
1.713" | 1.475" | 19.34 | 16.69 |
| GAFF 008AP | 30.06 AP. 308 NATO, 5.56 M193 (1 Shot) | 2.513 | 2.275" | 29.36 | 26.71 |
| GAFF 50 CAL B | 50 Cal Ball (1 Shot) | NA | 3.00" | NA | 39 |
| GAFF 50 CAL AP | 50 Call AP (1 Shot) | NA | 4.25" | NA | 48 |
