Glass Laminates

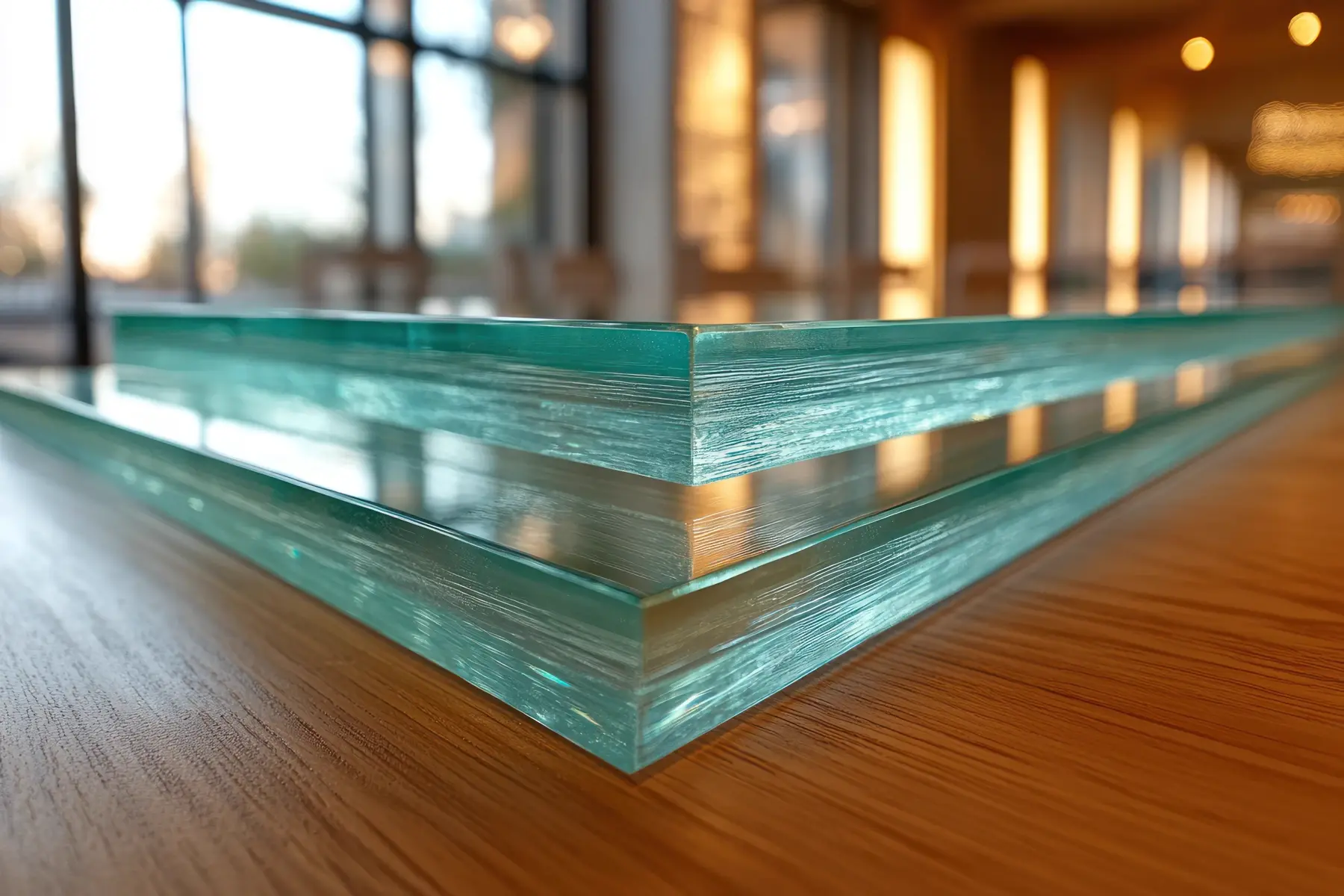

Whether supplied flat or curved for a specific application, GAFFCO Laminated Glass offers the durability of traditional bullet-resistant glazing at an extremely affordable cost. These glass laminates meet NIJ and UL standards for bullet-resistant applications. We also manufacture laminated glass to meet any other standard you may require.
We can provide you with the following surfaces:
- Tempered
- Heat Strengthened
- Annealed
- Chemically Strengthened
- Grey, Green or Bronze Tints
Diagrams
Specifications
All Glass Laminates
| Product | Threat | Thickness | Lbs/Sq.Ft. |
|---|---|---|---|
| GAFF 001AG | 9mm (3 Shots) | 1.185" | 15.25 |
| GAFF ULI | 9mm (3 Shots), UL Listed | 1.28" | 16.2 |
| GAFF 002AG | .357 MAG, 9mm (3 Shots) | 1.40 | 17.94 |
| GAFF 003AG | .44 MAG, .357 MAG, 9mm (3 Shots) | 1.59" | 20.38 |
| GAFF 004AG | 308, 30-06, 7.62 X 39 SC (AK 47) 5.56 X 45 M193 | 2.00 | 25.63 |
| GAFF 008AG | 30-06 AP M2 | 2.40 | 29.76 |
